building_gateway_services

The ABAP code and slides for a presentation on building SAP Gateway services, pulled with abapGit into a local package, with a system alias to maintain once the objects are activated.

Pairs the slide deck from a "Building SAP Gateway Services" presentation with the ABAP artifacts it walks through, pulled with abapGit into a local package such as $GWDEMO, either online or from a downloaded zip. Once the objects are activated a system alias has to be maintained in transaction /IWFND/MAINT_SERVICE. It stops there: for anything else about SAP Gateway the README points to SAP's own documentation.

GitHub13 ★
abaplint3,464 lines

Facts

Last pushLicenceMIT

Where it sits

Lives in
ABAP
Demonstrates
ODataABAPODatacapabilityExposing data and operations through OData, including the service model, metadata and protocol versions clients require. Version differences affect which clients can consume a service and which query features they can use.
Requires
abapGitabapGitartifactInstalls the repository's ABAP artifacts into the system; the README names abapGit as the way to do it, online or by importing a zip.

Who is behind it

Graham RobinsonGraham RobinsonPersonMaintains this
In the atlas: maintains 1, contributes to 2@grahamrobbomaintainerGregor WolfPersonContributes to this
In the atlas: maintains 17, contributes to 59, wrote 2@gregorwolfJohn PattersonPersonContributes to this
In the atlas: contributes to 2@jasper072 contributors

What it declares

Every artifact

Type
Sample
Origin
Independently maintained
Use as
A reference

As a sample

Form
does not say

Connections2

README

quoted from grahamrobbo/building_gateway_services under MIT, read
grahamrobbo/building_gateway_services/README.mdOn GitHub

Building SAP Gateway Services

Thanks for your interest in my "Building SAP Gateway Services" presentation.

You can find the slides here.

Grab the ABAP code from the repository and install it on your own system to look at it more closely, see it in action and fiddle with it yourself.

Installation


To install the code onto your ABAP system you will need to use the abapGit project by @larshp.

Instructions for installing abapGit can be found here.

If you haven't seen abapGit before I highly recommend you take a good look at it. If you find it useful perhaps you could consider joining the project and making your own contributions?

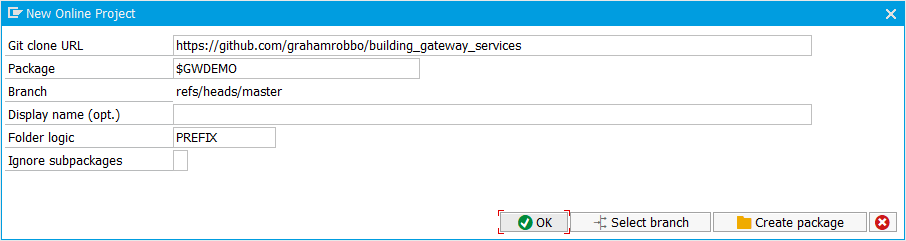

Use the abapGit + Online option to link an ABAP package to my GitHub repository. See Install Online Repository

Alernatively you can also download the repository as a *.zip file and import it using the + Offline option. See Import Zip

I recommend using a local package just for this purpose called something like $GWDEMO.

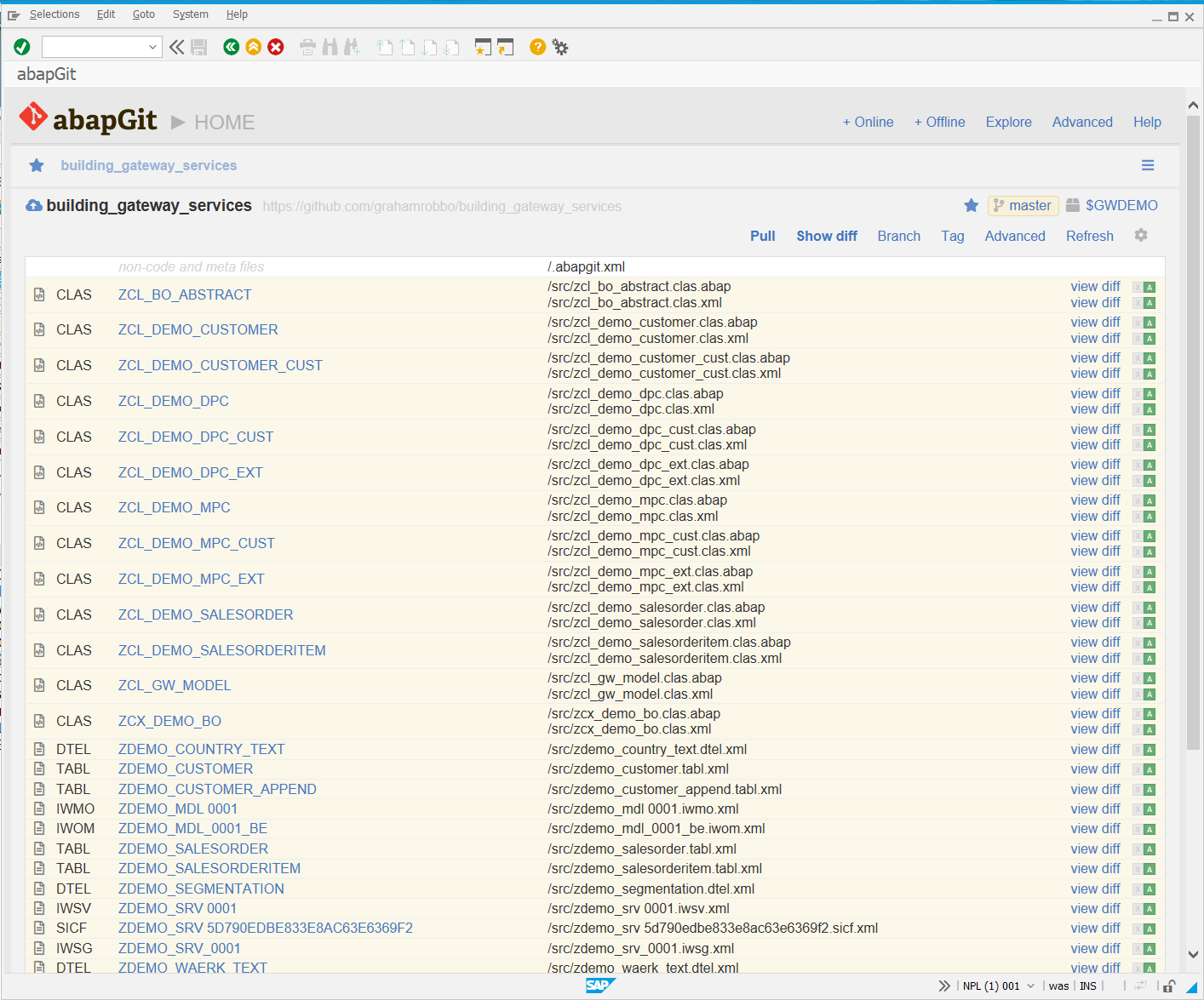

Select the Pull option to load all the ABAP artifacts into your nominated package.


Setup

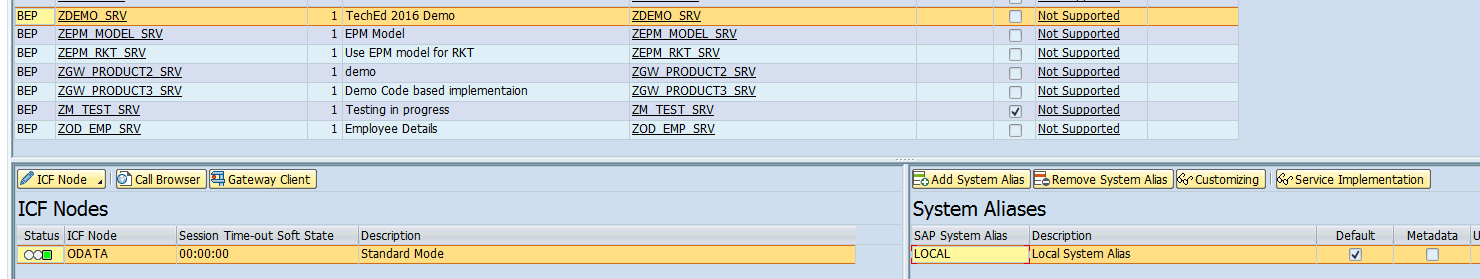

Once all objects are activated you will need to maintain a system alias. You do this in transaction /IWFND/MAINT_SERVICE.


For all other aspects about SAP Gateway services consult the SAP documentation.

Enjoy!


Photo by M Gillet
