SAP-samples/btp-joule-a2a-pro-code-agent

Reference Implementation for A2A-Compliant Pro-Code Agents on SAP BTP with Joule Integration and RPT-1

Modular reference implementation covering a full-fledged agentic scenario end to end including Joule Integration via the A2A Protocol.

📖 Introduction & Purpose

This repository serves as a reference implementation for building enterprise-grade, "Pro-Code" Agents on the SAP Business Technology Platform (BTP). It demonstrates a modular, full-fledged agentic scenario from end-to-end, adhering to best practices for BTP development.

The primary goals of this project are:

• A2A Compliance: Implementing Agent-to-Agent (A2A) Protocol compliant agents ("3rd Party Agents") to set scope, identify specification gaps, and contribute upstream fixes.
• Joule Integration: Facilitating outbound A2A integration where Joule acts as the client for BTP-hosted or remotely hosted 3rd party agents.
• Leveraging SAP-RPT-1 to run use cases like forecasting (e.g., Payment Delay, New Product Introduction) or simulation.

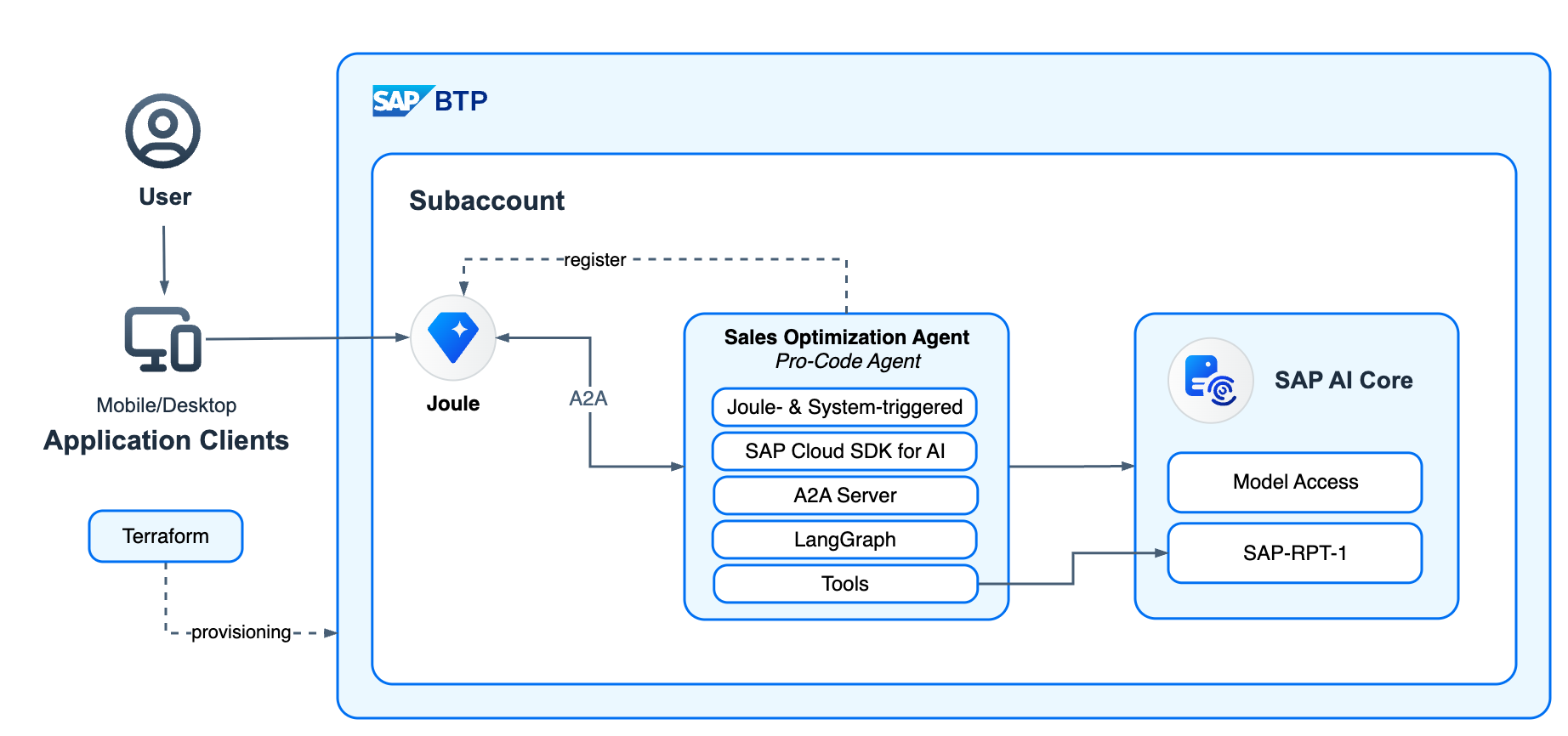

🏗️ Architecture

This simplified architecture is enhanced with access to RPT-1 as a tool and is based on reference architectures from the SAP Architecture Center: Integrating AI Agents with Joule and Pro-Code AI Agents on SAP BTP.

✨ Features

The project features are organized by status, ranging from core A2A compliance to advanced integrations.

Feature / Module	Status	Description
A2A-Compliant Agent	✅ Done	Full implementation of the A2A protocol specifications, capable of handling complex agentic workflows.
Pro-Code AI Agent Implementation	✅ Done	Built using LangGraph (TypeScript) on CAP, integrated with the SAP Cloud SDK for AI to access models via the Generative AI Hub. Includes Human-in-the-Loop patterns.
Joule Integration (A2A)	✅ Done	Integration into Joule via the A2A protocol
Asynchronous Communication	✅ Done	Implementation of Webhooks for A2A PushNotifications. Includes a WebSocket-based server and React UI to visualize status updates as they arrive.
Extension Sample	✅ Done	Examples of custom logic extensions (e.g., mocking responses) to bypass LLM generation for testing or specific logic handling.
Advanced Forecasting	✅ Done	Leveraging SAP-RPT-1 to run use cases like forecasting (e.g., Payment Delay, New Product Introduction) or simulation.
Infrastructure as Code	✅ Done	Full E2E setup via Terraform.

🛠️ Tech Stack & References

• Infrastructure:
  • SAP Business Technology Platform
  • Cloud Foundry
  • Generative AI Hub in SAP's AI Foundation
• Frameworks:
  • SAP Cloud Application Programming Model (CAP)
  • LangGraph JS (Agent Framework)
• Protocol: A2A Protocol Spec
• SDKs:
  • SAP Cloud SDK for AI
  • A2A JavaScript SDK

📂 Project Structure

The repository is organized into modular components to simulate a distributed agent environment:

Directory	Description
a2a-agent	The core Pro-Code Agent. • Written in TypeScript on CAP. • Uses LangGraph for agent logic. • A2A Compliant. • Connects to Generative AI Hub via SAP Cloud SDK for AI.
joule-integration	Connecting Joule via the A2A protocol to the a2a-agent using action type agent-request.
webhook-server	A WebSocket-based CAP server for handling A2A PushNotifications. • Backend (CAP): Receives StatusUpdates from the agent. • Frontend (React.js): Displays incoming status updates live.
terraform	Infrastructure as Code for full E2E BTP setup. • Provisions subaccount, Cloud Foundry, IAS trust, Joule, AI Core, HANA, and all service bindings. • Uses SAP BTP, Cloud Foundry, and SCI Terraform providers.

🚦 Getting Started

• Local Setup
• Infrastructure Setup (Terraform)
• Deployment to Cloud Foundry
• Joule Integration

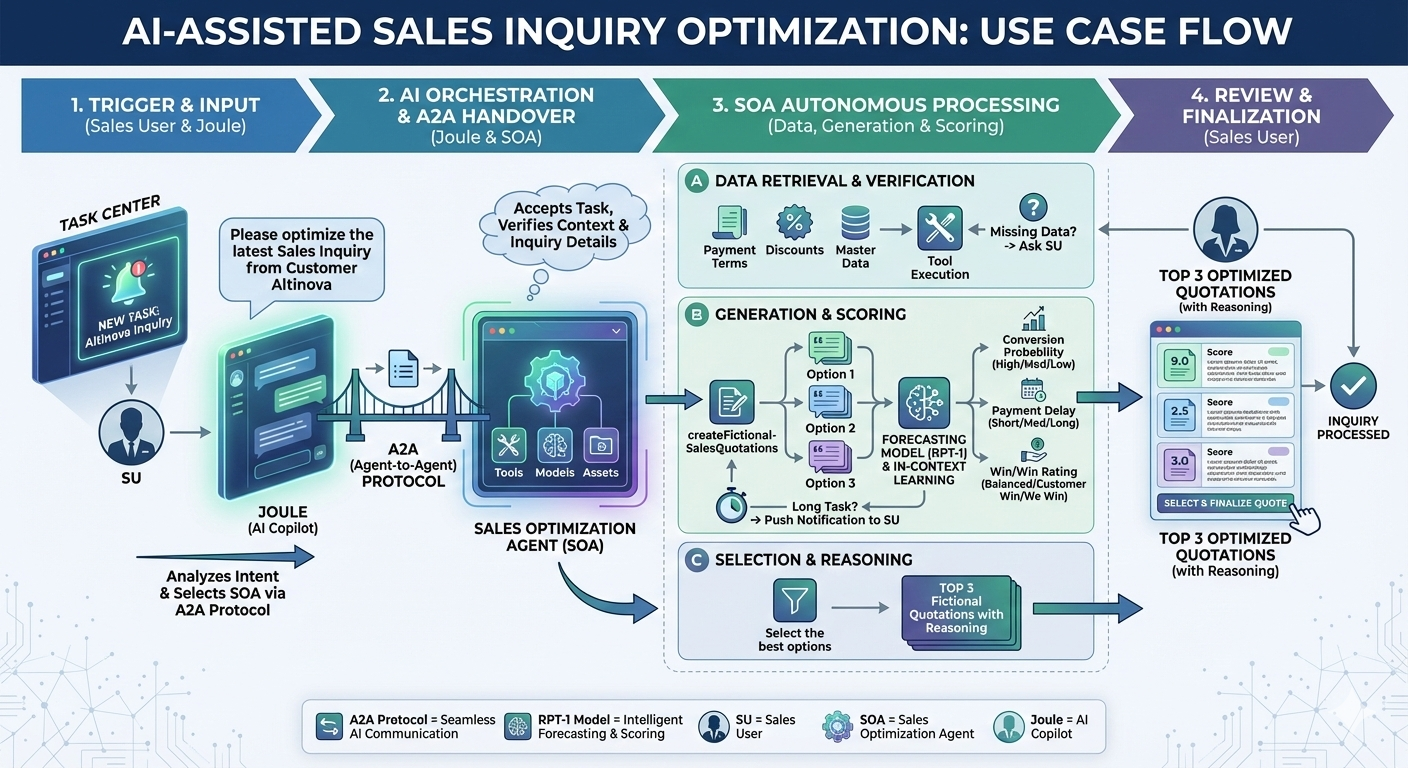

💡 Use Case: AI-Assisted Sales Inquiry Optimization

User Story

As a Sales User at BestRun, I want to use the Joule AI Copilot to automatically analyze, generate, and score optimized sales quotation options for incoming customer inquiries, So that I can maximize the sales conversion probability, balance profitability, and respond to customers (like Altinova) faster with the best possible terms.

Acceptance Criteria

• The Sales User can trigger the optimization directly from the Task Center via Joule.
• Joule must automatically identify and delegate the request to the specific Sales Optimization Agent (SOA) via A2A protocol.
• The SOA must auto-retrieve necessary data (Payment Terms, Discounts) and generate multiple fictional sales quotations.
• The system must use the RPT-1 forecasting model to score these quotations based on Conversion Probability, Payment Delay, and a "Win/Win" rating.
• The user is presented with the Top 3 distinct quotation options with reasoning for manual finalization.

---

Use Case Specification

Use Case Name: Optimize Sales Inquiry via Agent-to-Agent (A2A) Delegation

Actors

• Sales User (SU)
• Joule: The AI Assistant.
• Sales Optimization Agent (SOA): The backend autonomous agent.
• Customer (Altinova): Trigger entity (sender of inquiry).

Preconditions

1. A new Sales Inquiry from Customer "Altinova" exists in the system.
2. The Sales Inquiry appears as an open item in the SU’s Task Center.
3. The SU has permissions to access Joule and Sales tools.

Main Success Scenario (Happy Path)

Step	Actor	Action
1	System	Displays a notification/dot in the Task Center indicating a new Sales Inquiry from Altinova.
2	SU	Opens Joule (AI Copilot) and inputs the command: "Please optimize the latest Sales Inquiry from Customer Altinova."
3	Joule	Analyzes the intent and available assets. Identifies the Sales Optimization Agent (SOA) as the suitable tool.
4	Joule	Initiates Agent-to-Agent (A2A) handover and transmits the task to the SOA.
5	SOA	Accepts the task and verifies context. Validates that the Inquiry ID and Customer Name are available.
6	SOA	Tool Execution: Retrieves available data assets (Payment Terms, applicable Discounts, Master Data).
7	SOA	Tool Execution: Uses createFictionalSalesQuotations to generate multiple combinatorial variants of the quotation.
8	SOA	Reasoning: Applies the Forecasting Model RPT-1 (in-context learning) to evaluate the variants based on: Sales Conversion Probability, Expected Payment Delay, Rating (Win vs. Customer Win).
9	SOA	Selects the Top 3 best-performing fictional quotations.
10	Joule	Displays the Top 3 options to the SU, including the reasoning/score for each.
11	SU	Reviews the options and selects/refines the preferred quotation for creation.

Alternative Flows

A1. Missing Data (Step 5)

• If the SOA detects missing details (e.g., Sales Inquiry ID is ambiguous), it halts the automatic flow.
• SOA/Joule asks the SU a clarifying question to retrieve the missing information.
• Once answered, the flow resumes at Step 6.

A2. Long Processing Time (Step 7-9)

• If the combinatorics or RPT-1 model processing takes longer than the standard interaction threshold:
• Joule informs the SU that the calculation is running in the background.
• System sends a Push Notification to the SU once the Top 3 options are ready for review.
