SAP-samples/btp-ai-core-usage-monitor

AI Core Consumption Monitor

A Python background agent that runs on SAP BTP Cloud Foundry and monitors daily AI Core capacity unit consumption. When consumption approaches a configured monthly spending limit, it sends notifications via SMTP email or SAP Alert Notification Service (ANS).

How It Works

┌─────────────────────────────────────────────────────────────┐
│  SAP BTP Cloud Foundry                                      │
│                                                             │
│  ┌──────────────────────────────────────────────────────┐   │
│  │  ai-core-monitor (Python / Flask)                    │   │
│  │                                                      │   │
│  │  APScheduler ──► run_monitoring_job() [daily 07:00]  │   │
│  │       │                                              │   │
│  │       ▼                                              │   │
│  │  UAS Reporting API ──► fetch usage (OAuth2)          │   │
│  │       │                                              │   │
│  │       ▼                                              │   │
│  │  Aggregate ai-core capacity_units                    │   │
│  │       │                                              │   │
│  │       ▼                                              │   │
│  │  Compare vs. SPENDING_LIMIT                          │   │
│  │       │                                              │   │
│  │       ├── < 60%  → INFO  (daily email if enabled)    │   │
│  │       ├── ≥ 60%  → WARNING email 🟡                  │   │
│  │       └── ≥ 80%  → ALERT email 🔴                    │   │
│  │                                                      │   │
│  │  Flask endpoints: /health  /status  /trigger         │   │
│  └──────────────────────────────────────────────────────┘   │
└─────────────────────────────────────────────────────────────┘

Metric tracked: serviceId=ai-core + measureId=capacity_units — summed across all models (Claude, GPT, embedding models, etc.) for the current calendar month. When RESOURCE_GROUP is set, only records matching that AI Core resource group (instanceId) are included.

Project Structure

ai-core-monitor/
├── server.py          # Flask app entry point (health, /status, /trigger, /config)
├── agent.py           # APScheduler + core monitoring logic
├── usage_client.py    # UAS Reporting API client (OAuth2 + aggregation)
├── notifier.py        # SMTP HTML email + SAP Alert Notification Service
├── config.py          # All configuration from environment variables
├── manifest.yml       # CF deployment manifest
├── xs-security.json   # XSUAA security descriptor
├── Procfile           # gunicorn startup command
├── requirements.txt   # Python dependencies
├── runtime.txt        # Python version
├── .env.example       # Template for local development
└── README.md

Configuration Reference

All configuration is via environment variables (set in manifest.yml or via cf set-env).

Prerequisites

1. SAP BTP subaccount with a Cloud Foundry environment enabled
2. Cloud Foundry memory quota — at least 256 MB available in the CF org/space (memory: 256M in manifest.yml)
3. SAP AI Core (Extended plan) active in the subaccount whose usage you want to monitor — this is the SUBACCOUNT_ID you configure
4. Usage Data Management (uas) service instance (reporting-ga-admin plan) — for fetching consumption data via the UAS Reporting API
5. XSUAA service instance — for JWT-based endpoint protection
6. CF CLI installed and authenticated (cf login)
7. Python 3.11+ (local development only — CF deployment uses python-3.11.x as specified in runtime.txt)
8. Notification channel — choose one:
   • SMTP server (e.g. Office 365, Gmail, SendGrid) — set ENABLE_SMTP=true (default)
   • SAP Alert Notification Service instance — set ENABLE_ANS=true

Step-by-Step Deployment

1. Create the XSUAA service instance

cf create-service xsuaa application ai-core-monitor-xsuaa -c xs-security.json

2. Create and bind the UAS service instance

Create a Usage Data Management (uas) service instance and bind it to the app. Credentials are then read automatically from VCAP_SERVICES — no env vars needed.

The service has two relevant plans:

For monitoring a subaccount, use reporting-ga-admin:

cf create-service uas reporting-ga-admin uas-reporting

Role requirement: The service principal must have access to the global account that owns the subaccount being monitored. If you receive a 403 Forbidden, ensure the service instance was created at the correct account level.

cf create-service-key uas-reporting uas-reporting-key
cf service-key uas-reporting uas-reporting-key

{
  "clientid":     "sb-xxxxxxxx!bXXXXX|uas-reporting!bXXX",
  "clientsecret": "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx",
  "url":          "https://<global-account-id>.authentication.<region>.hana.ondemand.com"
}

3. Configure notifications

Choose one notification channel:

Option A — SMTP email (default)

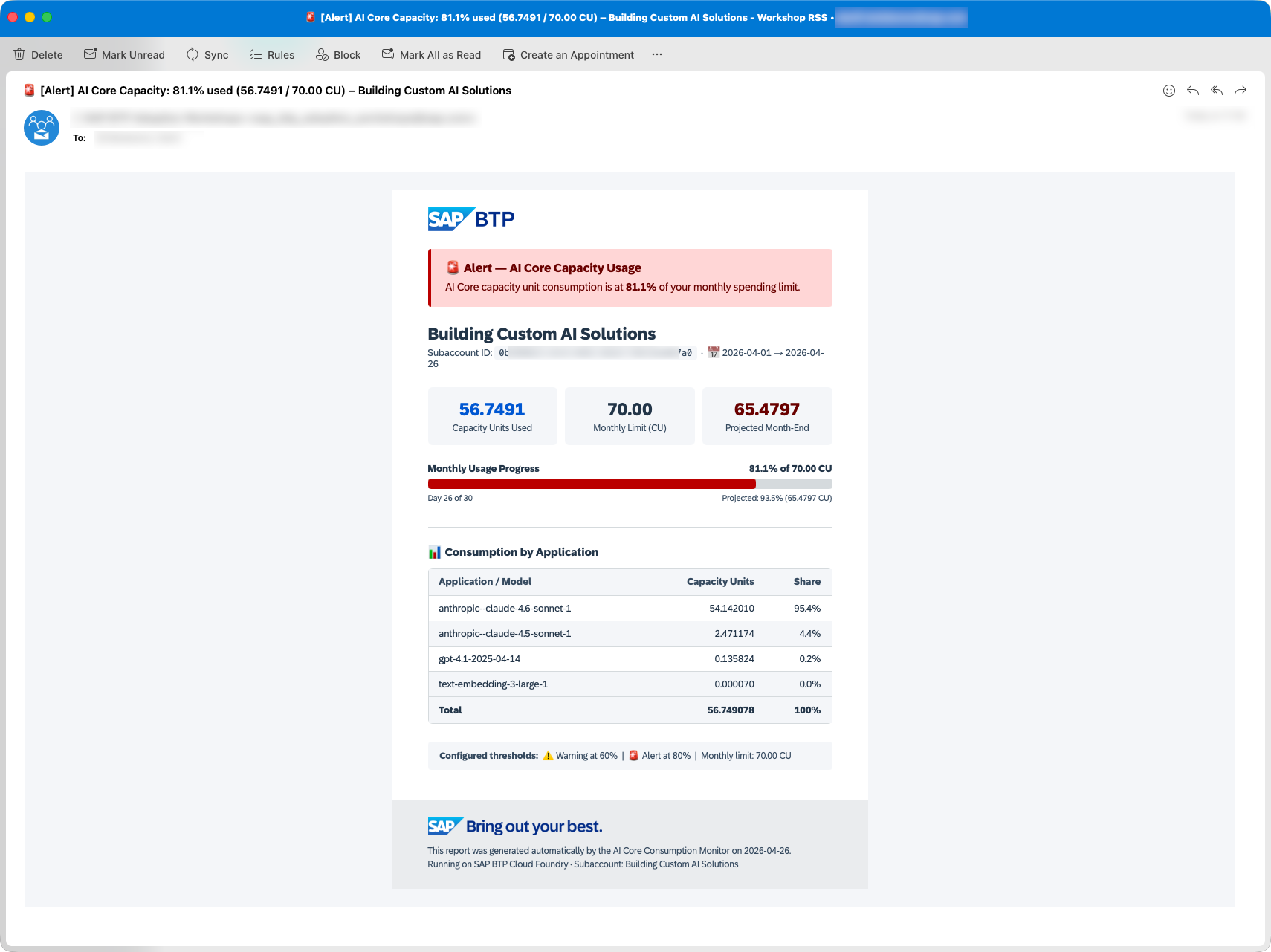

The HTML email uses SAP BTP styling ('72 Brand' font, SAP colour palette) and includes:

• 🟢/🟡/🔴 colour-coded alert banner with left-border accent
• Key metrics: CU used, monthly limit, projected month-end
• Visual progress bar (Outlook-compatible, table-based)
• Per-model consumption breakdown table
• Configured threshold reference

SMTP is enabled by default in manifest.yml. Fill in your SMTP server details:

services:
  - uas-reporting
  - ai-core-monitor-xsuaa

env:
  SUBACCOUNT_ID: "your-subaccount-uuid"
  SPENDING_LIMIT: "50"
  NOTIFICATION_EMAIL: "your-team@company.com"
  ENABLE_SMTP: "true"
  SMTP_HOST: "smtp.office365.com"
  SMTP_PORT: "587"
  SMTP_USER: "monitor@company.com"
  SMTP_USE_TLS: "true"
  # SMTP_FROM: "monitor@company.com"  # only if your server requires a specific sender address

Set the SMTP password after cf push (see Step 5):

cf set-env ai-core-monitor SMTP_PASSWORD 'your-smtp-password'

Option B — SAP Alert Notification Service

When ENABLE_ANS=true, the agent posts a structured event to the ANS Producer API (/cf/producer/v1/resource-events). ANS routes the event to email, Slack, MS Teams, PagerDuty, or any other configured action.

Event payload fields:

All field values are well within ANS character limits (subject ≤ 255, body ≤ 2000, tag values ≤ 255).

See the official tutorial: Getting Started with SAP Alert Notification Service for SAP BTP

Create the ANS service instance and bind it — credentials are read automatically from VCAP_SERVICES:

cf create-service alert-notification standard ai-core-monitor-ans

Update manifest.yml:

services:
  - uas-reporting
  - ai-core-monitor-xsuaa
  - ai-core-monitor-ans

env:
  SUBACCOUNT_ID: "your-subaccount-uuid"
  SPENDING_LIMIT: "50"
  ENABLE_SMTP: "false"
  ENABLE_ANS: "true"

cf create-service-key ai-core-monitor-ans ai-core-monitor-ans-key
cf service-key ai-core-monitor-ans ai-core-monitor-ans-key

Create a condition and subscription

In the ANS dashboard (BTP cockpit → your ANS service instance → Manage):

1. Go to Actions → Create and configure your delivery channel.

   ANS supports multiple action types — choose whichever fits your setup (or any other channel available in your ANS instance):

   Type	Notes
   EMAIL	Plain-text email (default, no extra config needed)
   EMAIL + HTML	Rich HTML email — requires a custom Payload Template (see below)
   SLACK	Post to a Slack channel via webhook
   MS_TEAMS	Post to a Microsoft Teams channel via webhook
   …	Any other channel configured in your ANS instance

   For a plain-text email, just fill in the recipient address and leave Subject/Payload Templates empty.

   For a rich HTML email, additionally:

   • Check Use HTML ✅
   • Fill in Subject Template and Payload Template as shown below

   ⚠️ Two requirements for HTML emails in ANS:

   1. A custom Payload Template must be provided (leaving it empty gives "Using HTML is not allowed for the default email payload template")
   2. The template must contain the placeholder {ans-disclaimer} (ANS appends its mandatory legal footer there)

{subject}

<!DOCTYPE html><html><head><meta charset="UTF-8"></head>
<body style="margin:0;padding:0;background:#f4f6f9;font-family:Arial,Helvetica,sans-serif;">
<table width="100%" cellpadding="0" cellspacing="0" style="padding:20px 0;"><tr><td align="center">
<table width="600" cellpadding="0" cellspacing="0" style="background:#fff;">

<tr><td style="padding:20px 40px;background:#fff;">
  <img src="https://www.sap.com/dam/application/shared/logos/sap-group/sap-btp-blu.png" alt="SAP BTP" height="28" style="height:28px;width:auto;vertical-align:top;">
</td></tr>

<tr><td style="padding:0 40px;">
  <table width="100%" cellpadding="0" cellspacing="0"><tr>
    <td style="background:{tags.alertBg};border-left:4px solid {tags.alertBorder};padding:14px 16px;border-radius:4px;">
      <b style="color:{tags.alertColor};font-size:15px;">{tags.alertEmoji} {tags.alertLabel} — AI Core Capacity Usage</b>
      <p style="margin:5px 0 0;color:{tags.alertColor};font-size:13px;">Consumption is at <b>{tags.percentageUsed}%</b> of your monthly spending limit.</p>
    </td>
  </tr></table>
</td></tr>

<tr><td style="padding:16px 40px 0;">
  <b style="font-size:18px;color:#223548;">{tags.subaccountName}</b>
  <p style="margin:3px 0 0;font-size:12px;color:#354a5f;">Subaccount: {tags.subaccountId} &nbsp;·&nbsp; {tags.periodStart} → {tags.periodEnd}</p>
</td></tr>

<tr><td style="padding:14px 40px 0;">
  <table width="100%" cellpadding="0" cellspacing="0"><tr>
    <td width="32%" style="text-align:center;padding:12px 8px;background:#f4f6f9;border-radius:6px;">
      <div style="font-size:20px;font-weight:700;color:#0057d2;">{tags.totalCapacityUnits}</div>
      <div style="font-size:11px;color:#354a5f;margin-top:3px;">CU Used</div>
    </td>
    <td width="2%"></td>
    <td width="32%" style="text-align:center;padding:12px 8px;background:#f4f6f9;border-radius:6px;">
      <div style="font-size:20px;font-weight:700;color:#223548;">{tags.spendingLimit}</div>
      <div style="font-size:11px;color:#354a5f;margin-top:3px;">Monthly Limit</div>
    </td>
    <td width="2%"></td>
    <td width="32%" style="text-align:center;padding:12px 8px;background:#f4f6f9;border-radius:6px;">
      <div style="font-size:20px;font-weight:700;color:{tags.alertColor};">{tags.projectedCu}</div>
      <div style="font-size:11px;color:#354a5f;margin-top:3px;">Projected</div>
    </td>
  </tr></table>
</td></tr>

<tr><td style="padding:12px 40px 0;font-size:12px;color:#354a5f;">
  Day {tags.daysElapsed} of {tags.daysInMonth} &nbsp;|&nbsp; ⚠️ warn at {tags.warningThreshold}% &nbsp;|&nbsp; 🚨 alert at {tags.alertThreshold}%
</td></tr>

<tr><td style="padding:14px 40px;">
  <div style="background:#f4f6f9;border-radius:4px;padding:10px 14px;font-size:12px;color:#354a5f;">
    <pre style="margin:0;white-space:pre-wrap;font-family:Arial,Helvetica,sans-serif;">{body}</pre>
  </div>
</td></tr>

<tr><td style="background:#EAECEE;padding:16px 40px;">
  <img src="https://www.sap.com/dam/application/shared/logos/sap-group/sap-tagline-straight-r-grad-blu.png" alt="SAP" height="20" style="height:20px;width:auto;vertical-align:top;display:block;margin-bottom:8px;">
  <p style="margin:0;font-size:11px;color:#8396a8;">{ans-disclaimer}</p>
</td></tr>

</table></td></tr></table>
</body></html>

2. Go to Conditions → Create:

   • Property: eventType
   • Predicate: EQUALS
   • Value: AI_CORE_CAPACITY_MONITOR

3. Go to Subscriptions → Create, then:

   • Select the condition created in step 2
   • Select the action created in step 1

4. Deploy

cf push

5. Set secrets

# Only required if ENABLE_SMTP=true:
cf set-env ai-core-monitor SMTP_PASSWORD 'your-smtp-password'

# Only required when using explicit credentials (not CF service binding):
cf set-env ai-core-monitor UAS_CLIENT_SECRET 'your-uas-client-secret'
cf set-env ai-core-monitor ANS_CLIENT_SECRET 'your-ans-client-secret'

# cf restart is sufficient after cf set-env (no rebuild needed)
# Use cf restage only if you changed services: bindings or requirements.txt
cf restart ai-core-monitor

6. Verify

# Check app is running – the output shows the assigned random route
cf app ai-core-monitor

# Get just the URL
APP_URL="https://$(cf app ai-core-monitor | grep -E '^routes:' | awk '{print $2}')"

# View logs
cf logs ai-core-monitor --recent

# Check health endpoint (no auth required)
curl "$APP_URL/health"

# Get a Bearer token from XSUAA (clientid/clientsecret from the xsuaa service key)
TOKEN=$(curl -s -X POST \
  'https://<subaccount>.authentication.<region>.hana.ondemand.com/oauth/token' \
  -u '<clientid>:<clientsecret>' \
  -d 'grant_type=client_credentials' | jq -r .access_token)

# View last monitoring result
curl -H "Authorization: Bearer $TOKEN" "$APP_URL/status"

# Manually trigger a check (dry run – no emails sent)
curl -X POST "$APP_URL/trigger" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"dry_run": true}'

# Manually trigger a real check (sends notifications if thresholds are met)
curl -X POST "$APP_URL/trigger" -H "Authorization: Bearer $TOKEN"

Multi-team Monitoring

To send per-resource-group alerts to different recipients, deploy the app multiple times — one instance per team. Each instance monitors its own resource group and emails its own recipient list independently.

# Team A — resource group "default", 50 CU limit
cf push ai-core-monitor-team-a -f manifest.yml
cf set-env ai-core-monitor-team-a RESOURCE_GROUP default
cf set-env ai-core-monitor-team-a SPENDING_LIMIT 50
cf set-env ai-core-monitor-team-a NOTIFICATION_EMAIL team-a@company.com
cf restart ai-core-monitor-team-a

# Team B — resource group "research", 30 CU limit
cf push ai-core-monitor-team-b -f manifest.yml
cf set-env ai-core-monitor-team-b RESOURCE_GROUP research
cf set-env ai-core-monitor-team-b SPENDING_LIMIT 30
cf set-env ai-core-monitor-team-b NOTIFICATION_EMAIL team-b@company.com
cf restart ai-core-monitor-team-b

API Endpoints

/trigger request body (optional)

{ "dry_run": true }

When dry_run=true, usage is fetched and the alert level is computed, but no notifications are sent. Useful for testing.

/status response example

{
  "status": "ok",
  "last_run_utc": "2026-04-22T07:00:01.234567+00:00",
  "alert_level": "INFO",
  "usage": {
    "total_cu": 17.6328,
    "spending_limit": 100.0,
    "percentage_used": 17.63,
    "projected_cu": 24.12,
    "days_elapsed": 22,
    "days_in_month": 30,
    "period_start": "2026-04-01",
    "period_end": "2026-04-22",
    "subaccount_name": "Building Custom AI Solutions",
    "by_application": {
      "anthropic--claude-4.6-sonnet-1": 15.0546,
      "anthropic--claude-4.5-sonnet-1": 2.4712,
      "gpt-4.1-2025-04-14": 0.1070,
      "text-embedding-3-large-1": 0.0001
    }
  },
  "notification_results": {
    "smtp": true
  },
  "error": null
}

Security

The app uses SAP XSUAA (OAuth2 JWT) to protect the /status, /config, and /trigger endpoints.

On BTP: An xsuaa service instance must be bound to the app (see Step 1). If the binding is missing, all protected endpoints return 401.

Locally: JWT validation is automatically disabled when VCAP_SERVICES is not set — all endpoints are accessible without a token.

To obtain a token for testing against a deployed instance:

# Get a token from XSUAA (clientid/clientsecret from the xsuaa service key)
TOKEN=$(curl -s -X POST \
  'https://<subaccount>.authentication.<region>.hana.ondemand.com/oauth/token' \
  -u '<clientid>:<clientsecret>' \
  -d 'grant_type=client_credentials' | jq -r .access_token)

curl -H "Authorization: Bearer $TOKEN" "$APP_URL/status"

Local Development

⚠️ CF service bindings (VCAP_SERVICES) are not available locally. Use explicit credentials for both UAS and ANS when running locally — set all required values in .env.

# Install dependencies
pip install -r requirements.txt

# Copy and fill in environment variables
cp .env.example .env
# Edit .env with your actual values:
#   UAS_CLIENT_ID, UAS_CLIENT_SECRET, UAS_TOKEN_URL  (always required locally)
#   ANS_URL, ANS_CLIENT_ID, ANS_CLIENT_SECRET, ANS_TOKEN_URL  (if testing ANS)
#   SMTP_HOST, SMTP_USER, SMTP_PASSWORD  (if testing SMTP)

# Run locally (loads .env automatically via python-dotenv)
python server.py

# Test endpoints
curl http://localhost:8080/health
curl -X POST http://localhost:8080/trigger -H "Content-Type: application/json" -d '{"dry_run": true}'

Troubleshooting

Known Issues

How to obtain support

Create an issue in this repository if you find a bug or have questions about the content.

For additional support, ask a question in SAP Community.

Contributing

If you wish to contribute code, offer fixes or improvements, please send a pull request. Due to legal reasons, contributors will be asked to accept a DCO when they create the first pull request to this project. This happens in an automated fashion during the submission process. SAP uses the standard DCO text of the Linux Foundation.

License

Copyright (c) 2026 SAP SE or an SAP affiliate company. All rights reserved. This project is licensed under the Apache Software License, version 2.0 except as noted otherwise in the LICENSE file.
