SAP-samples/abap-platform-rap200

Home - Workshops about the ABAP RESTful Application Programming Model (RAP)

RAP200 – Explore ABAP Cloud Features in a Guided Scenario (Focus: RAP)

Description

This repository contains the material for the hands-on session RAP200 – Explore ABAP Cloud Features in a Guided Scenario (Focus: RAP).

This hands-on workshop allows developers to explore various ABAP Cloud features, especially within the ABAP RESTful Application Programming Model (RAP), through a guided scenario:

• ADT wizard "From Scratch OData UI Service" to build RAP service, with and without AI support from scratch - *Focus on Plain wizard
• Collaborative draft, enabling multiple users to work on the same RAP business object instance simultaneously
• Event-driven RAP side effects, allowing specific fields to be updated without reloading the entire data whenever a defined business event is raised
• Use of the Background processing framework (bgPF) to asynchronously trigger an external process within a RAP BO
• Read-only RAP Analytical table to provide a data visualization in SAP Fiori, supporting set of structured data and multiple aggregation options

Level

🧑‍🎓 Intermediate.

Table of Content

• Requirements for attending this workshop
• Overview
• Exercises
• Solution Package
• Known Issues
• How to obtain support
• Further Information

Requirements for attending this workshop

^Top of page

To complete the practical exercises in this workshop, you need:

• An SAP BTP ABAP Environment system (e.g. SAP BTP Trial), or access to an SAP S/4HANA Cloud Public Edition system
• Latest ABAP Development Tools (ADT) Plugin for Eclipse
• Basic knowledge of ABAP and the ABAP RESTful Application Programming Model (RAP) - see (RAP100 – Build Fiori Apps with the ABAP RESTful Application Programming Model)

🔵 Click to expand!

The technical requirements to follow the exercises in this repository are:

1. Install the latest ABAP Development Tools (ADT) for Eclipse

2. Only for self-paced mode:
   Create an SAP BTP ABAP Environment Trial User or use an on-premise system

   ⚠ Regarding SAP-led events or workshops ⚠️
   → A dedicated system will be provided for SAP-led events.
   → Access details will be shared by the instructors at the beginning of the session.

Overview

^Top of page

In this hands-on workshop, you will build and enhance a Travel Processing application using the ABAP RESTful Application Programming Model (RAP). You will generate a transactional UI service, enhance it with business logic, add collaborative draft handling, implement event-driven side effects, and create a read-only analytical table.

🔵 Click to expand!

In this workshop, you will:

• Generate a transactional OData-based UI service using the RAP Generator
• Enhance the RAP Business Object with determinations, actions, and dynamic feature control
• Add collaborative draft handling to the Travel application
• Implement event-driven side effects
• Create a read-only RAP Analytical Table for reporting

The RAP Business Object consists of two entities:

• Travel (root entity)
• Booking (child entity)

🏁 Resulting apps:

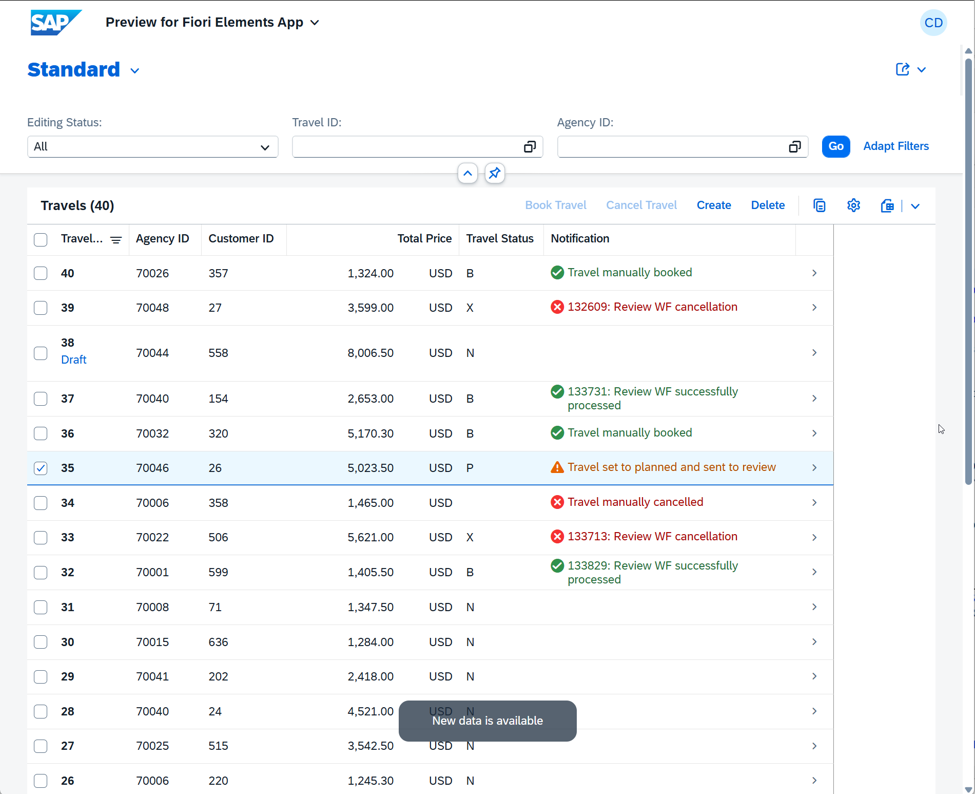

Transactional Travel Processing App (Exercise Blocks A + B)

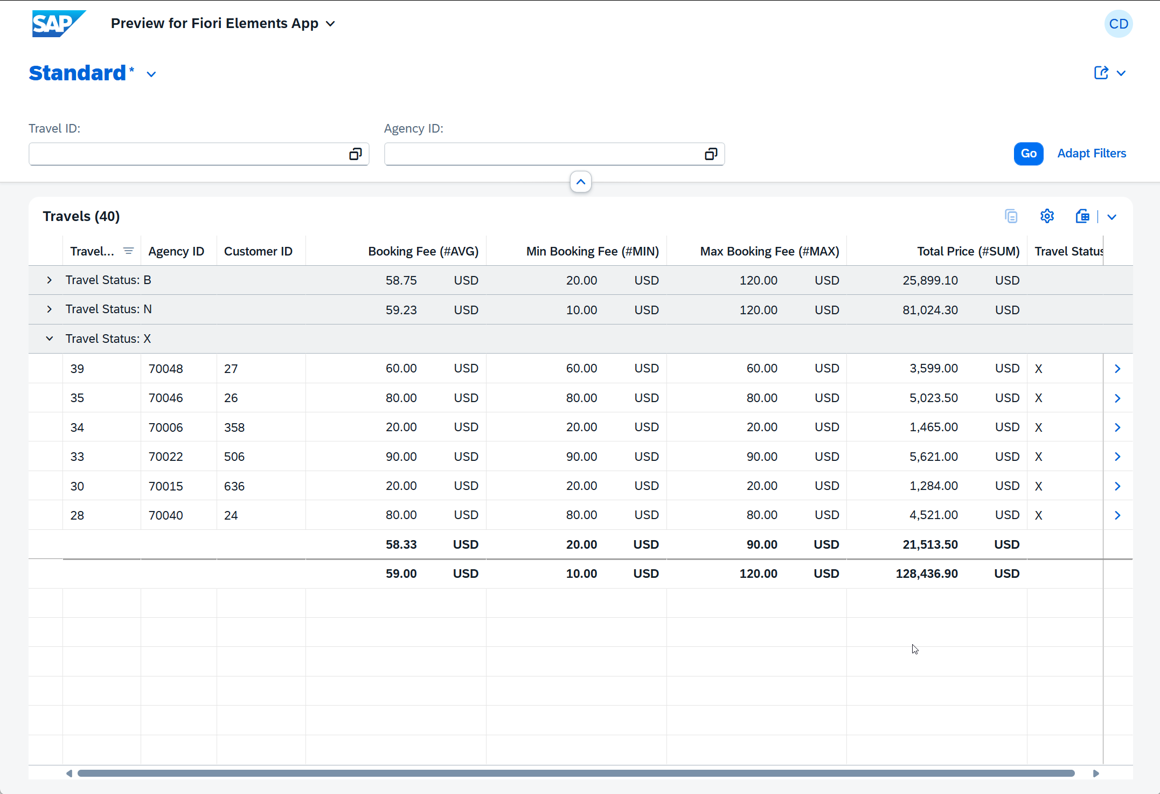

Read-only Travel Reporting App (Exercise Blocks A + C)

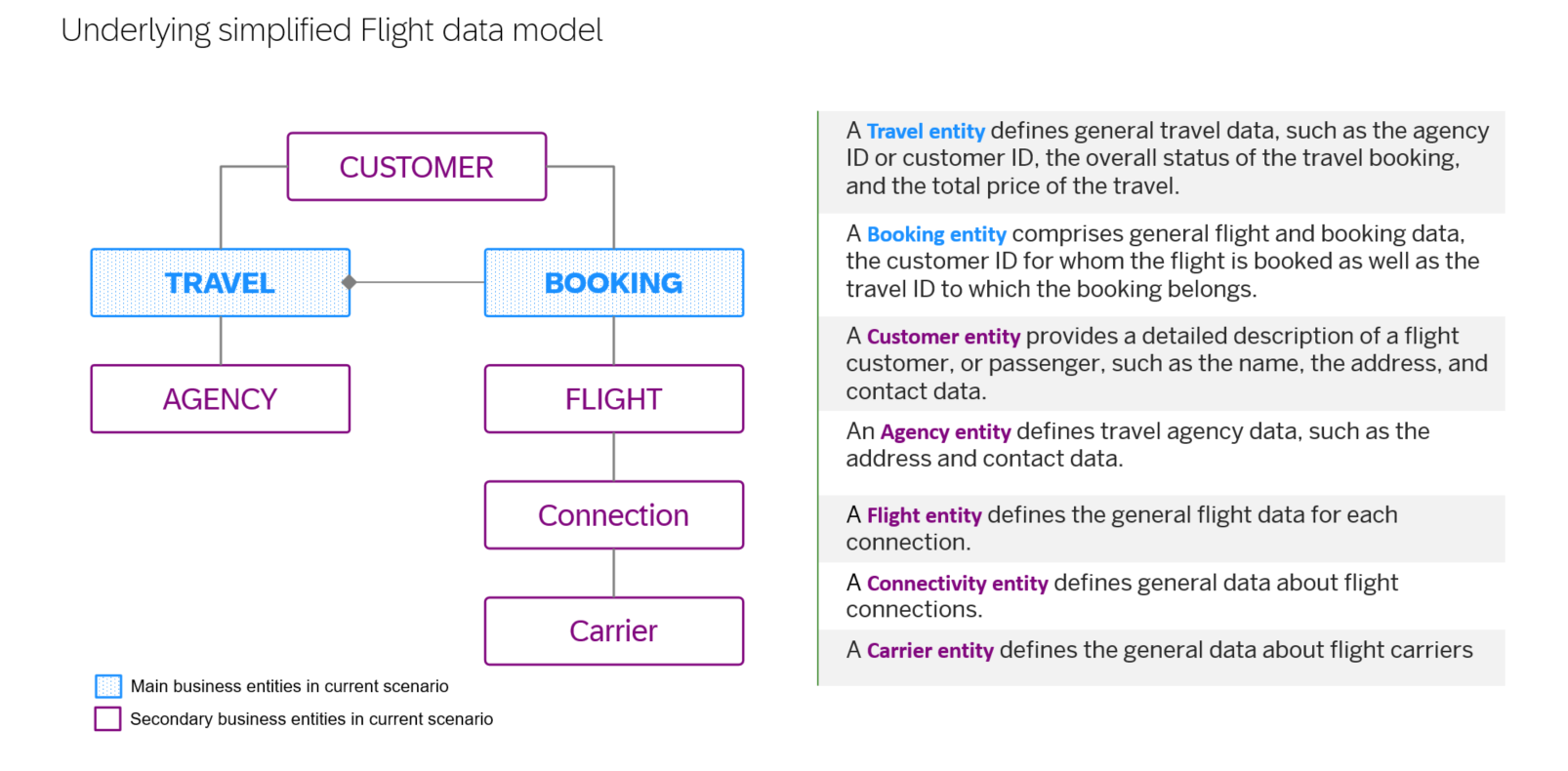

🗃️ Underlying simplified Flight data model

Underlying simplified Flight data model

Exercises

^Top of page

Follow the step-by-step instructions provided in the different exercises to build and enhance an application to process Travel record using the ABAP RESTful Application Programming Model (RAP).

Exercise Block A:

This exercise block provides the transactional UI service for the Travel BO for the Manage Travel app, which is further enhanced in the exercise blocks B and C.

Exercises	--
Getting Started	--
Exercise 1: Generate the Transactional UI Service	--

Exercise Block B:

This exercise block enhances the transactional capabilities of the Manage Travel app built in the exercise block A.

💡Prerequisites: Completion of Exercise Block A

Exercises	--
Exercise 2: Basic Adaptations of the Generated UI Service	--
Exercise 3: Add Collaborative Draft	--
Exercise 4: Add Event-Driven Side Effects	--
Exercise 5: Using the Background Processing Framework (bgPF)	--

Exercise Block C:

In this exercise block, you build a new consumption app with basic analytical capabilities for a read-only Travel app, based on the Travel app from exercise block A.

💡Prerequisites: Completion of Exercise Block A

Exercises	--
Exercise 6: Developing Read-Only RAP Analytical Tables	--

Solution Package

^Top of page

You can import the solution package ZRAP200_SOL into the following systems:

• SAP BTP ABAP Environment
• SAP S/4HANA Cloud Public Edition

Known Issues

^Top of page

No known issues.

How to obtain support

^Top of page

Create an issue in this repository if you find a bug or have questions about the content.

For additional support, ask a question in SAP Community.

Further Information

^Top of page

You can find more information about RAP and related topics here:

• ABAP RESTful Application Programming Model – Documentation
• Develop and Run a Fiori Application with SAP Business Application Studio
• SAP BTP ABAP Environment Community
