VERTEX

ABAP VERTEX Tools

Install

VS Code — the Marketplace · Eclipse ADT — the update site

For VS Code, the recommended companion is ABAP Syntax Highlighting by Lars Hvam (larshp.vscode-abap).

VERTEX: Get Started opens the Welcome walkthrough from the Command Palette.

VERTEX is a set of plugins for VS Code and Eclipse ADT. Each window reads over the developer's existing ADT connection and renders as HTML.

Serverless, in VS Code - the ABAP transpiler runs ABAP on your machine:

• a report, a method of a local class or a function module, its parameters asked in a panel and kept as named variants
• only SELECTs go to the SAP system, read through ADT; the logic runs locally
• every step and every value change recorded: step, set breakpoints and conditional variable watchpoints, replay the run to any step
• a value followed back to a clickable formula of how it was calculated, each part opening the line that produced it

Against SAP:

• AI assistant over any SAP system, and an MCP server for Claude Code, Codex and Copilot
• enhanced ABAP editor: ABAP Unit, ATC, block-by-block review before activation
• AI-driven ADT debugger: conditions SAP evaluates, a verdict naming the line
• visual debugger with recording and replay
• forward and backward usage analysis, down to the formula of a value (BSE)
• the path to a line: the conditions inside its METHOD or FORM under which it runs
• version history, diff and transport review
• code explorer: metrics, UML, Logic and Calls diagrams
• data explorer (SelecTor): tables, joins, pivots

Visual Debug gives each recorded SAP session an ID from its first step; the chat can cite and open those steps before or after Save session. Runs started in Visual Debug with the ABAP Transpiler are registered in transpiler history and included in chat context, so the assistant can cite and open their recorded steps. Ordinary diagram nodes have transparent backgrounds, and their clickable labels follow the editor text color in every theme.

The ABAP side is this repository's src/. It is optional: in VS Code everything works over ADT alone, and src/ is needed only to save a transport's review to SAP; without it, reviews are saved to files. The Eclipse plugin does the same. The last column below says what needs it.

In VS Code, the built-in VERTEX Assistant can use Codex, Claude Code, a signed-in GitHub Copilot model or API keys for Anthropic, OpenAI, Mistral, Gemini, Groq, Cerebras, OpenRouter and NVIDIA. Provider model lists can be collapsed independently. Each list has a Clear all / Select all control for its model checkboxes. If a provider returns no models, LLM Providers displays an explicit empty-state message. In the VS Code sidebar, model-loading errors appear below the model selector. Start chat by naming the package or program to inspect; a single match opens in Object Navigator. For a plain name without an exact match, VERTEX tries prefix and contained-name searches; explicit wildcards are used as written. The VS Code chat can explain an active local .abap file using its current editor text, even without a SAP connection. Local ABAP programs and classes support VERTEX Outline, definition navigation, UML, metrics, Logic and Calls diagrams, and forward/backward usage analysis. VERTEX bundles the abaplint transpiler and runtime. VERTEX: Run with ABAP Transpiler on a local file asks the selection screen in a popup - blocks, PARAMETERS, SELECT-OPTIONS and the program's selection texts, laid out as SAP does - and shows what the program wrote (Output); with a breakpoint set the same panel is the debugger, which stops there and steps on. Visual Analysis / Debug opens that panel whole, for analysis with or without a run. Project configuration is generated automatically when absent. After a run, Formula and Expression of a chosen value keep only the path the run took and carry the recorded values in brackets; with no path analysed they are written out from the record. An SAP program, a method of an SAP class or a function module runs with the transpiler too, from VERTEX: Run with ABAP Transpiler in its editor's context menu or beside Run in SAP: its active version, its includes, the customer classes and interfaces the run can reach from where it starts and the dictionary types they use are read from SAP first - a method nothing reaches goes to the transpiler without its body -, and a step goes into an include as in SAP; a function module the code calls brings its function group. SAP program selection screens use the selection texts and text symbols maintained in SAP. See local execution setup. SAP execution and version history still require a system.

From a SAP source tab's context menu, VERTEX: Run SAP in web GUI opens the program in WebGUI or a class/function module's test screen. It works without a breakpoint.

Tool	Grew out of	What it does	VS Code	Eclipse	ABAP backend
Enhanced Code Editor	—	Hover with a data element's domain resolved, Go to (F12), Outline, Save & Activate and block-by-block Review & Activate, ABAP Unit into the Test Explorer (Ctrl+Shift+F10), ATC into Problems (Ctrl+Shift+F2), where-used (Shift+F12), SAP's keyword documentation (F1)	✓	—	not needed
AI-driven ADT debugger	Smart Debugger	Breakpoints with conditions SAP evaluates and watchpoint logs, the run started in WebGUI, the stops, a short dump reported instead of silence, a verdict naming the line and the values; the VERTEX chat has it built in, Claude Code and Codex reach it over MCP as vertex-debug	✓	—	not needed
Visual Debug	—	The same session on screen: source, breakpoints, stack, every variable, tables as grids, the flow chart of a recorded run and its player. The first recorded SAP stop includes Globals such as selection-screen values. In VS Code, SAP & Transpiler Logs opens SAP recordings and transpiler runs for replay or deletion; SAP recordings can be renamed.	✓	✓ ³	not needed
Value Origin	ACE	Forward Usage Analysis - how a value is computed, down from a line across calls: the static call stack, the derivation as FLOW or Formula, each as a tree or a diagram; Backward Usage Analysis - where the values of a routine go in its callers, by SAP's where-used	✓	✓	not needed
AI Assistant	ABAP-AI-Code	Chat over any configured SAP system: reads, explains and changes code — the change lands in the tab, reviewed block by block before activation — runs the tests and ATC on an object, and drives the debugger	✓	✓ ¹	not needed
Versions / Reviewer	AVE	Version history, the diff between two versions, the review of a whole transport with approve, decline and comments, and the two MCP transport tools	✓	✓ ²	to save reviews in SAP
Code Explorer	ACE	Metrics (McCabe, Halstead, maintainability), UML, the Calls diagram of an object and the Logic view of one method; a method opened from Calls draws its Logic view in the same picture	✓	✓ ²	not needed
Data Explorer (SelecTor)	Simple Data Explorer	Tables, views and CDS with select-options, a join built from the dictionary's foreign keys, a pivot over either	✓	✓ ²	not needed

¹ In Eclipse the assistant is run by the Codex or Claude Code CLI on your own subscription, and ADT is the editor: there is no VERTEX tab for it to write into, and the debugger is not part of it. See eclipse/README.md.

² The explorer pages are shared between both hosts. The Eclipse update site carries build 0.9.30.20261023215155; the VS Code extension is 0.9.30.

³ In Eclipse, Visual Debug drives ADT's own debug session instead of a second debugger, and Run opens the object in Eclipse's embedded SAP GUI. It is in the plugin source and a local test build, not yet on the update site, and has not been checked on a live ADT session. On a live stop, Eclipse opens and positions the source editor; Visual Debug no longer opens another class tab for each step.

Grew out of names where a tool's ideas were worked out first. VERTEX does not depend on those projects: nothing from Simple Data Explorer, ACE, AVE, Smart Debugger or ABAP-AI-Code has to be installed, and none of their code is called. Code Explorer, Value Origin and Visual Debug read ADT source and analyse it with abaplint in the editor; SelecTor builds its statements and reads them through ADT's standard data preview; in VS Code the version history and its diff come from ADT's revision feed, as in Eclipse's Revision History, and the review of a transport is built from them in the window, with AVE's rules for choosing the versions and cutting blocks. Saving it to SAP goes through one resource of VERTEX's own ABAP, ZCL_VX_ADT_RES_STORE, into the ZAVE_REVIEW table AVE uses too - ADT's data preview can read a table but not write it; reviews can also be kept in files. The AVE repository itself is not needed. The Eclipse plugin reads them the same way.

Where the two hosts stand apart. The editor and the AI-driven debugger are VS Code only by design: Eclipse has ADT's own editor and debugger, and VERTEX does not replace them - Visual Debug in Eclipse puts ADT's debugger session on screen rather than running its own. Eclipse also has its own built-in assistant and standalone MCP setup. Shared Tools pages are updated in the repository, but the published update site can lag behind the source until it is rebuilt.

The two transport-review MCP tools also use standard ADT, without VERTEX's ABAP classes: they read a saved review from ZAVE_REVIEW through data preview, or build an unsaved review from version history. They cannot save or approve reviews. For standalone setup, including Eclipse Copilot, see mcp/README.md.

The projects named above are where the ideas were worked out first, and they are not developed further; everything new happens here.

SAP Systems Configuration in the VS Code

VERTEX registers the ABAP language itself; opening SAP code does not require another ABAP extension. Claude Code detection also accepts a native CLI in PATH or ~/.local/bin when its VS Code extension is absent. Restart VS Code after installing the CLI. LLM Providers reports a missing Claude executable before offering its models. MCP setup offers Codex or Claude Code and copies both review and debugger registrations together. Every Welcome step has an ⓘ Info button explaining system import, connection testing, assistant choice or MCP capabilities. Codex also detects a standalone native CLI, including the native executable in a global npm installation found through PATH. Restart VS Code after installing it. On Windows, Codex detection also checks %APPDATA%/npm.

Connecting

Configure vertex.systems in VS Code settings. authType defaults to basic: use your SAP user and password. VERTEX asks for the password once per system and keeps it in the OS credential store through VS Code SecretStorage, never in settings. A refused password is discarded; the next operation asks again. Basic also works on remote extension hosts. VERTEX: Forget Credentials clears the active system's stored credentials.

SAP Systems (the server icon in the VERTEX panel's title, or the link under vertex.systems in Settings) lists every configured system in a table. Per row: the radio button makes it the active system; SNC switches it between SNC single sign-on and password authentication; On switches it off or on - a system switched off stays in vertex.systems ("disabled": true) but is left out of every list, switch and test, and a tab opened from it says so; Log in asks for the password and keeps it in the OS credential store, then tests - where a password is already kept, the button reads Save new password (SAP is not asked to tell); Test asks ADT on that system alone and shows the answer in the row, kept there until the window is reloaded, also when the table is closed; Delete removes it from vertex.systems after a confirmation. Import from SAP Logon and Eclipse and Edit in settings.json stand above the table.

In SAP Systems, the SNC checkbox switches a system between SNC single sign-on and password authentication. Turning SNC off keeps its connection details; turning it back on requires the system's SNC partner name and RFC application-server host/instance settings. The checkbox does not delete or re-import the system.

The universal VSIX carries prebuilt RFC bindings for Windows x64 and macOS on Apple silicon. SNC requires local VS Code, Secure Login Client, and the SAP NW RFC library installed on your computer. On Windows, VERTEX looks for sapnwrfc.dll in SAPNWRFC_HOME, Windows System32, SAP GUI and PATH. On macOS, put the SDK's lib directory on DYLD_LIBRARY_PATH before starting VS Code. Your SAP account needs RFC authorization for SADT_REST_RFC_ENDPOINT.

Over RFC, hover and navigation send the whole source of the open object to SAP, and SADT_REST_RFC_ENDPOINT can dump (XML_FORMAT_ERROR) on a large one. vertex.rfc.maxAnalysedLines (default 0, no limit) sets the longest source sent; an object whose source once made SAP dump is not sent again until the window is reloaded. For such a source, hover reports that it was not sent, and double-click and F12 find the name with abaplint inside that source - a name declared in another object is reached only through the static and instance calls VERTEX resolves itself.

VERTEX's direct SNC connection builds on fr0ster-forks' auth-broker PR #1: it carries ADT requests over RFC through sap-rfc-lite and SADT_REST_RFC_ENDPOINT, without using the SAP ADT for VS Code extension. The 0.9.11 VSIX includes Windows and macOS native bindings, searches for an installed sapnwrfc.dll on Windows, and imports SNC/RFC settings from SAP Logon. The SAP RFC library itself is not bundled. A separate SDK installation may be unnecessary when a compatible library is already present, but that library is still required at runtime.

"vertex.systems": [
  {
    "name": "<display name>",
    "url": "https://<ADT address>:<ICM port>",
    "client": "<client>",
    "user": "<ABAP user>",
    "authType": "snc",
    "snc": { "partnerName": "p:CN=SID, O=ACME", "qop": "9" },
    "rfc": { "ashost": "<application server>", "sysnr": "00" }
  }
]

For SNC, user identifies the ABAP user the debugger targets; no password is prompted for. Secure Login Client supplies the logon. snc.partnerName and rfc.ashost/rfc.sysnr are required; the RFC address is never derived from url. VERTEX: Import SAP Systems fills those SNC and RFC fields from a direct SAP Logon entry; it asks for a client or user only when the chosen Eclipse workspace does not supply them. An SNC logon group without a named application server needs a separate direct entry before import. Optional SNC settings are qop ("1", "2", "3", "8", "9"), library (the SNC library path, discovered when omitted), and myName (the local SNC name). rfc.saprouter is optional. url remains required for identity and WebGUI.

SNC can be refused before connecting:

• "SNC needs the local VS Code on Windows or macOS; this window runs on a remote host (‹remoteName›)."
• "SNC runs on Windows x64 and macOS on Apple silicon only."
• "This VERTEX package has no SNC support" if the RFC binding is missing.

If the SAP library or binding cannot load, VERTEX names the missing component and includes the load failure.

Running a program under the debugger opens WebGUI. ADT breakpoints do not catch a SAP GUI (SAP Logon) session. For SNC systems too, browser logon for WebGUI is SAP's (SSO certificate/SPNego or password), independent of SNC.

Install the extension from the Marketplace, then give it the connection Eclipse would take from the ABAP project. There is no project here, so the systems are a list and one of them is active. They live in VS Code's settings: Ctrl+Shift+P → Preferences: Open User Settings (JSON), and the entries go into that file.

A first install opens Get started with VERTEX (VS Code's Get Started page; later Help > Get Started): import the systems, test them, choose the assistant, add the VERTEX MCP server - each step with its button. The quickest way is VERTEX: Import SAP Systems (also a button in SAP Systems and a link under vertex.systems in Settings); it offers only systems not yet configured. It takes each system's host and instance from SAP Logon or an Eclipse ADT project (so SAP Logon is optional on macOS), and the client and user from the ADT workspace. Recent workspaces from Eclipse installations, including macOS .app bundles, are offered; another folder can be chosen. It then looks for ADT on the usual ports - 443NN and 80NN for the instance, then 44300, 8000, 50001, 50000, 443, 80, 8443, 8080 - offering only addresses that answer. VERTEX: Test SAP Systems then logs on to each configured system and says what is wrong, if anything; for basic, the password it asks for is kept in the OS credential store, never in settings. VERTEX: Remove SAP Systems lets you select entries to delete from vertex.systems; it switches to a remaining system if the active one was removed. The original SAP Logon or ADT entries stay available for a later import. The import also checks where the debugger can open WebGUI (/sap/bc/gui/sap/its/webgui): on the system's url it needs nothing; served on another address that answered - say url on HTTP 8000, WebGUI on HTTPS 44300 - or behind a redirect to a host this computer resolves, it writes that as webgui; found nowhere, it says so, and webgui is set by hand. By hand, the entries look like this; the HTTP(S) port is in SMICM > Goto > Services.

"vertex.systems": [
  {
    "name": "DEV",
    "url": "https://host.example.com:44300",
    "client": "100",
    "user": "DEVELOPER"
  }
],
"vertex.active": "DEV"

The url is the ICM port, not the one SAP GUI connects to. An empty vertex.active means the first. VERTEX: Switch System picks another one from a list.

Eclipse

The update site address is pasted into Help → Install New Software → Add → Location; the steps, and getting back out when a p2 install goes wrong, are in INSTALL.md. VERTEX then opens from Window → Show View → Other… → VERTEX, or right-click an object in the Project Explorer → VERTEX.

SAP

For the three explorers, pull this repository's src/ with abapGit and activate it; nothing else has to be installed. A window that needs it and does not find it says so, and the rest of VERTEX goes on working. The table, the join and the pivot were carried out of Simple Data Explorer, the flow and the metrics out of ACE, and the version history, the diff, the transport lookup and the review out of AVE — first into src/ as ZCL_VX_*, with the SAP GUI stripped off, and since then, in VS Code, into the window itself, read over ADT. None of the three is a prerequisite any more: they are where the logic was written first, and they are not developed further — everything new happens on this side. The ZAVE_REVIEW table reviews are saved in ships in src/ as well.

Building either half from this repository instead: BUILD.md.

Value Origin

Without a variable under the cursor, Forward Usage Analysis offers FLOW with Full scope; Formula, Expression and BSE are disabled until a variable is selected.

Both Value Origin windows expose Analysis log directly above the flow. Copy log copies the engine, source loading and parsing times, source closure, definitions, dependency edges, traversal, warnings, and Formula/Expression diagnostics. The log is accessible without enabling the technical sections.

Experimental client BSE. In a VERTEX ABAP source tab, select the same variable and run VERTEX: BSE — only ADT + linter beside VERTEX: Forward Usage Analysis. The new command loads source through standard ADT, parses it locally with bundled @abaplint/core, and opens a separate window labelled ADT + abaplint. It does not request the SAP ACE origin index. It uses open editor buffers, including unsaved edits; compare saved, activated code to give both engines the same input. Source loading follows the selected value: main files first, external dependencies and local class includes only when needed, with metadata and source cached within each analysis. Full FLOW shows the loaded source closure. Interface-qualified method names are supported. The implementation shares the existing slice algorithm and reports unsupported statements. Alias analysis, dynamic dispatch and source closure are still experimental.

In VS Code both directions are reached through VERTEX: Visual Analysis / Debug - a breakpoint's Analyze flow path (forward) and Where used (backward) - not from the editor menu or the palette.

VERTEX: Forward Usage Analysis (formerly Analyze Variable Value Origin), on the cursor in a VERTEX ABAP source tab, answers where that value came from - backwards across calls, without running the program. ACE indexes and the customer sources they reference (Z*, Y*, /namespace/) are read from the same system; standard ABAP objects stay analysis boundaries. It needs ZCL_VX_ADT_RES_FLOW in SAP and active source. With no variable under the cursor it draws the flow forward from that line - the routine from there on and every customer routine it calls - without a slice of a value.

Value Origin takes a Type: FLOW or Formula. FLOW is what the program does — its statements grouped by class and method, nested by blocks and their branches, with a node on each call edge naming what that call passes (lv_scenario → IV_SCENARIO); it narrows from Full to BSE, which is what the analysis found and the path that led to it. Formula is how the value was computed: a = b + c at the top and the definitions of b and c as its two branches. The Depth slider decides how far the tree opens — along the call stack in FLOW, along the derivation in Formula — and one button beside it, offering Collapse all and then Expand all, says whether the levels shown are open, whatever the depth. Tree and Diagram stay the two views of whichever Type is chosen. Expression (0.8.0) is a third Type: the derivation written out as one formula by substitution - a share added to the value before it becomes value × (1 + share) - with each table value a link to the statement that reads it, and, where the order of steps is configured data (a pipeline), the order of the loaded scenario.

Branches and polymorphic targets are alternatives, database-dependent loop order is a boundary. Breakpoints in the editor stop the flow where a run would stop: VERTEX names the breakpoint reached and asks whether to stop the analysis there, continue to the next breakpoint or ignore the breakpoints. VERTEX: Backward Usage Analysis goes the other way: from the routine at the cursor up into the code that calls it - a where-used that follows the value. SAP's where-used finds the calls in the saved sources; in each caller the value is followed on from the call - what it is assigned to, tested in, passed to, written with - and, where it leaves the caller through a parameter of the caller's own, up again. A value passed in is followed to where each caller took it from. With a variable under the cursor that variable is followed (a local through the parameters and attributes it reaches); with none, every parameter of the routine and every attribute it uses; with neither, the calls themselves, as SAP's where-used gives them. Standard SAP code is not followed and is named. Breakpoints stop the walk as in Forward Usage Analysis, a level of callers at a time. The tab must be saved: where-used searches the saved source.

VERTEX: Path to This Line (editor context menu, ABAP sources) opens a panel with what the line under the cursor needs to run inside its METHOD or FORM: the enclosing IF, ELSEIF, CASE/WHEN, LOOP and CATCH branches with the earlier branches that must be false, the CHECKs before it, and the earlier branches that must not be taken because they leave the routine (RETURN, RAISE, LEAVE PROGRAM, EXIT) - with conditions nested inside them shown under the branch. A CHECK, CONTINUE or EXIT that only leaves one pass of a loop counts only for lines inside that loop. Conditions are shown exactly as written in the code, their keywords, strings, numbers, comments, methods and classes coloured as in the Logic view's Code; a click on a line number goes to it. While the panel is open, a click on another line of the same source builds that line's path in it; the Value sources toggle stays as it was set. A line after a statement that always leaves is reported as not reachable. The source is parsed locally, unsaved text included, so no SAP system is needed. The path stays inside the routine: callers, dynamic calls and values changed between a check and the line are not followed. In the Logic view (VERTEX Tools), the Reachability toggle does the same on the picture: with it on, a click on a node of a METHOD or FORM lights up the path that reaches it - the same branches, CHECKs and avoided exits - and quiets the rest. With vertex.pathToLine.methodRelativeLines on, the panel numbers lines from the routine's METHOD or FORM statement (line 1), as SAP GUI numbers a method; a click still goes to the source line. The Value sources toggle colours each variable read in the path's conditions, one colour per variable, and shows where it gets its value: the statement that last writes it before that condition stands in the path right above the condition, its line number in the variable's colour, and a list under the path repeats them, inside the routine, that writes it - an assignment, an IMPORTING or CHANGING parameter of a call or a function module, SELECT INTO, an inline DATA( ). Constants are not marked; a variable the routine does not write is listed as a parameter, an attribute or a global. abaplint finds the reads and writes, unknown types included.

ABAP blocks fold in the editor by their structure, not by indentation, so unformatted code folds as well as formatted: IF, CASE, LOOP, DO, WHILE, SELECT loops, TRY, METHOD, FORM, FUNCTION, MODULE, CLASS and INTERFACE from the opening statement to the line before the closing one, and each ELSEIF, ELSE, WHEN, CATCH and CLEANUP up to the next branch. A condition written over several lines stays visible when its block is folded.

Run Select. VERTEX: Run Select (editor context menu of a VERTEX ABAP tab): the SELECT at the cursor runs through ADT's data preview, read only, as Eclipse's SQL console runs a query, and the rows open beside the code. What only the running program would supply is left out: INTO and FOR ALL ENTRIES go, UP TO n ROWS is the row limit (otherwise 100; SELECT SINGLE reads one), and a WHERE condition that reads a program value - a variable, a parameter, a select-option - is dropped, an OR holding one dropped whole. What was dropped is listed above the rows. A program value under NOT or outside WHERE, or a dynamic table, list or condition, refuses the SELECT and says why. The statement is parsed with abaplint, saved or not. A SELECT on one table whose WHERE select-options can say opens in SelecTor instead, its conditions filled in as selection lines and each program value as an empty line to fill in; any other SELECT runs in the plain window, which says why it did not open in SelecTor. A SELECT with INNER or LEFT OUTER joins opens in SelecTor's Join, its tables in order, their ON conditions and the SELECT list carried over, when SelecTor's join takes them - it joins only the tables the dictionary offers; the selection starts folded. In a table the selection panel is a list of fields, as SAP GUI's selection screen is, each with a Shown checkbox. From Run Select only the SELECT's fields are read at first; Show hidden reads every field of the table and leaves the ones the SELECT did not ask for unticked, still there to select on.

This is a static dependency slice, not a solved runtime trace.

Idea for use: ABAP Unit in CI. Calculation classes and tests that work with the transpiler can run on a GitHub Actions Node.js runner after each push, without starting SAP. A CI repository installs its own npm dependencies and runs abap_transpile followed by node output/index.mjs; open-abap-core uses this pipeline. Tests needing SAP APIs or database behavior require substitutes or a SAP-backed test job. GitHub Actions billing depends on the repository and account plan. In VS Code, choose Analyze Local ABAP Package on a folder in Explorer to see UML and aggregate metrics for its .abap files, including subfolders. Click a method in UML to open its source in VS Code or Eclipse; this also works for local ABAP files in VS Code. In VS Code, UML method links open code beside the diagram and keep focus on UML. Metrics method links use the same side-by-side opening in VS Code, including package tables. UML includes methods implemented through interfaces as well as methods declared directly by a class. An abapGit folder tree may contain subpackages; VERTEX combines them for this view. Source lookup prefers the opened file's folder and reports duplicate names in a selected tree. The same command is available from the VS Code Command Palette and opens a folder picker. The main VERTEX Tools type list also has Local Folder, which opens the picker and shows UML or Metrics in the same window. UML and Metrics show the current analysis stage, object count and elapsed time. Switching between them for a local folder reuses parsed source until a file changes. UML and Metrics show the current analysis stage, object count and elapsed time. Switching between them for a local folder reuses parsed source until a file changes. Package Metrics has Expand all / Collapse all above Objects to open or close every object's method table. FLOW and Value Origin diagrams support graphs with more than 500 edges in both hosts. Eclipse Tools selects the active ADT class or program when opened from its editor. Each API provider can have several named keys, with one selected manually. For Mistral and other compatible APIs, the VS Code chat shows the token usage returned by the provider, summed across tool calls. With vertex.ai.logPath set, the VS Code assistant writes an Anthropic-compatible JSONL log for any provider. Each direct API or Copilot model call has its own record; CLI subscriptions are recorded per VERTEX invocation. Choose the folder in LLM Providers or Settings. Raw HTTP request bodies are not stored. The 📜 AI button on the VERTEX panel opens a session report for these logs beside the active editor, with date, provider, model and prompt filters and token totals. Sessions and content sections start collapsed. User questions, plain model answers and technical details have three theme-aware accent colours; tools, instructions and request context open separately. Each tool call starts collapsed under its name; expand it to inspect its arguments, matching result and links. Only content enabled in log settings is shown. Program bodies are replaced by links to current ABAP objects. Assistant transpiler and SAP debug calls link to recorded runs; SAP recordings retain observed stops. Recorded UML and metrics open from saved JSON snapshots, preserving the context supplied to the assistant. Clear selected conversations removes selected conversation logs while keeping execution recordings. 📜 SAP opens the separate SAP & Transpiler Logs list, where either type of recording can be opened or deleted. Eclipse's built-in Assistant uses Codex or Claude Code; Copilot Chat in Eclipse connects separately through MCP.

What each host has

VS Code

When the VERTEX chat resolves a single SAP object name, its answer links both the object and its package to their SAP tabs.

• VERTEX Tools — pick an object type and a name; the functions offered depend on the type (Object Navigator, Data, UML, Metrics, the Calls diagram and the Logic view, Diff, Versions). Object Navigator is the SE80 tree of a package, transport request, program, class or interface, each entry a link to its source. There is no View source: the source is the editor tab, and its parts are VS Code's Outline. Visual Debug is the panel beside the editor. Clicking a method in the Calls diagram opens its Logic view inside the same canvas, joined to the block it came from; the magnifier icon magnifies the diagram under the pointer, the same lens in every diagram.
• The ABAP editor — hover, Go to, outline, Save & Activate and the block-by-block Review & Activate; Ctrl+Shift+F10 runs ABAP Unit into the Test Explorer, Ctrl+Shift+F2 runs ATC into the Problems view, Shift+F12 shows where-used, F1 opens the keyword documentation.
• VERTEX chat — Claude or ChatGPT through a subscription or an Anthropic API key, over every system in vertex.systems; it reads, explains and changes code, and nothing reaches SAP until you save. Run the tests for ZCL_FOO and run ATC on ZCL_FOO are answered by running them: the result in the chat, the same run in the Test Explorer and the Problems view.
• The debugger for an assistant — Z_CALC computes the wrong discount, find out why: the assistant sets conditional breakpoints, runs the program in WebGUI and ends with the line and the values that prove it. Visual Debug shows the same session on screen, with a flow chart of the calls and a player for the recorded run.
• Assistant in SelecTor and Versions — a sentence instead of the clicks: SFLIGHT for carrier AA, joined with SCARR.

Everything, with its settings and commands: vscode/README.md.

Eclipse ADT

• VERTEX Tools — the same pages as in VS Code, opened from Window → Show View → VERTEX or the VERTEX submenu of an object's context menu (beside GitHub and Team), on that object's own ADT project. The editor's VERTEX commands, Path to This Line and Session Logs are in the same submenu.
• VERTEX Assistant — the chat over the ABAP project's system, and the Assistant panels in SelecTor and Versions, run by Codex or Claude Code.
• VERTEX: Activate — ADT's activation, optionally after the block review.

Setup of the assistant: eclipse/README.md.

Other assistants over MCP

The extension serves two MCP servers, and an assistant can take either.

The transport review. GitHub Copilot, Claude Code and Codex get two read-only tools: sap_transport_changes lists what a request changed, and sap_transport_diff gives the diff in review blocks with the verdicts already given. The VS Code extension serves them itself; without VS Code, mcp/ serves them over stdio. Setup: in VS Code · Copilot in Eclipse · without VS Code. The tested clients are Copilot in VS Code, Claude Code and Codex; others are not supported yet.

The debugger. Claude Code and Codex get the whole ADT debugger as a second MCP server of the extension, /debug, registered as vertex-debug: debug_set_breakpoint (with a condition SAP evaluates, or mode log for a continuing line trace), debug_watchpoint (a SAP variable-change stop), debug_run, debug_wait, debug_read, debug_step, debug_status, debug_log, debug_clear_breakpoints and debug_stop. Nothing there changes a variable or the code. It is the same session the VERTEX chat and Visual Debug drive, so a step made in one is seen by the others. It runs on the active system, needs a VS Code window with VERTEX open — the run is started in WebGUI and the listener has to outlive a single call — and for that reason the standalone server in mcp/ does not have it. Setup and the tools one by one: Debug with an assistant.

The explorers today

SelecTor offers Technical names / Text for Selection field labels and table headers, retaining the choice between loads.

Word	Comes from	What it does	In VERTEX	Status
Data	Simple Data Explorer	Tables, views and CDS with select-options, joins, pivot	SelecTor	A table with filters, a join built from the dictionary's own foreign keys, and a pivot over either
Version	AVE	History, diff, blame, code review of a whole transport	Versions	A transport — by its number, or picked from the open or released requests of a user, yours by default — a package or one object; its parts, their versions, the diff between two of them, and the review of a request — built, saved, approved, declined and commented on block by block. No blame
Code	ACE	Metrics, call maps, backward slicing, skeletons	Metrics	Three modes: the flow of a program, the branch scheme of one method, and McCabe, Halstead and the maintainability index per unit. A method opened from the Calls diagram draws its branch scheme in the same picture

Status: early. All three answer, and each is a fraction of what it was cut from.

Building a review is here too, not only reading one. In VS Code a request with no saved review is built from ADT when it is opened - every part it changed, the pair of versions chosen by AVE's rule, diffed and cut into blocks by AVE's walk - with the status line saying which part is being read; Rebuild from ADT builds it again from the request as it is now; Save keeps it, in ZAVE_REVIEW or in files as vertex.review.storage says, and approving, declining and commenting then change it the way AVE does. A saved review is checked against the request by each part's versions when it is opened; when the request changed since, the page names what moved and offers Rebuild from ADT, which replaces the saved review and drops its verdicts. The Eclipse plugin has the same check and Rebuild, and also Path to This Line and Session Logs. AVE's SAP GUI writes the same ZAVE_REVIEW, so a review saved either way is read by both. The Eclipse plugin builds and saves a review the same way; where it keeps reviews is set in Window → Preferences → VERTEX Code Review.

The diff is a shortest edit script over whole lines with nothing on top. In Eclipse it is Eclipse's own Text Compare (RangeDifferencer); in VS Code it is VERTEX's own line differ, Myers' algorithm, written from the published algorithm because Eclipse's comparer is under the EPL and VERTEX is MIT.

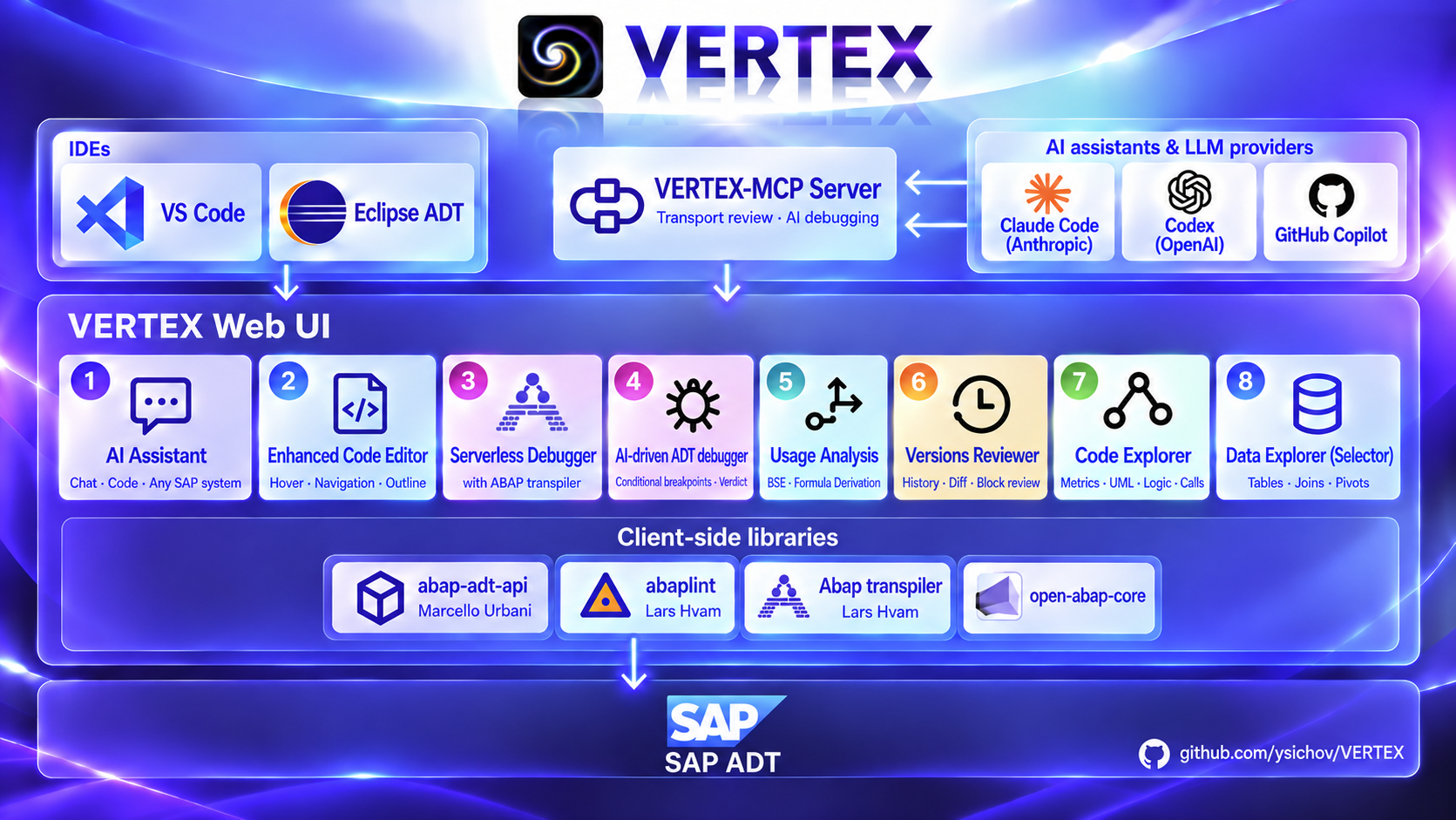

How it fits together

The division of labour is the same for all three: ABAP computes and returns JSON, the page renders it, and the view in between is transport. Nothing about a service lives in the host, so every page runs under the VS Code extension in vscode/ as well — the same files, from the same folder. And since SAP GUI 8.0 draws on the same WebView2 engine as both editors, one day inside SAP GUI too.

Every service registers under the one /vertex/ prefix, because that prefix is where the ADT node is claimed and not the identity of the service: a second one would mean a second BAdI implementation and a second filter to get wrong. The hub lives in this repository, under src/, together with everything the windows read except the review — so there is one thing to install and one registration to make. The prefix used to be /zsde/, from the repository the hub was first built in; that hub is gone, and a system still carrying it answers each prefix under its own filter.

The page receives finished JSON and knows nothing about SAP. That is what makes the second host possible: vscode/extension.js reads the very same files and answers them over plain HTTPS, and the markup, grids and filters are not written twice.

Talking to ADT

Reading and writing an ADT resource from Java, the WebView2 callback deadlock, and how to read signatures off the bundles when web search has nothing: ADT_TECH.md.

Layout

What each folder and file of the repository is for: BUILD.md.

Acknowledgements

The experimental client BSE parser uses abaplint by Lars Hvam and contributors (MIT). @abaplint/core is bundled in the VSIX; no separate installation or lint extension is required. Its licence is included in licenses/abaplint-MIT.txt.

The VS Code extension talks to SAP ADT through abap-adt-api by Marcello Urbani (MIT): reading and writing source, activation, the debugger, ABAP Unit, ATC, where-used, keyword documentation. It travels inside the VSIX with its licence, as do the other npm packages it depends on (MIT, Apache-2.0, BSD-3-Clause), each in its own folder. The Eclipse plugin does not use it: it works through the platform and ADT only.

The direct SNC transport uses fr0ster's @mcp-abap-adt/connection, auth broker and sap-rfc-lite, integrated into VERTEX through PR #1. Enrico Andreoli's adt-rfc-bridge independently documents ADT over SADT_REST_RFC_ENDPOINT and pointed us to the possibility of finding sapnwrfc.dll in an existing SAP GUI installation. VERTEX does not include its Python bridge. We have not established whether either implementation drew from the other.

Next

What is still missing, and what has to come out before it ships: Next.md.

For feature instructions, see VS Code documentation and Eclipse documentation. For changes between releases, see history.md.
